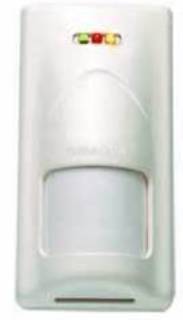

PD-110 |
 |
* Dual PIR and MW technology
* Microprocessor Design
* Temperature compensation
* Microwave range is adjustable
* Dual polarity pulse count adjustable
* Top view window and creep zone
* High PRI Immunity for false alarm prevention(30V/m-1GHz)
* Bracket is available
* Memory and Form-C relay
* Detect range 10m(PD-110), 11M( PT-111),15m(PD-115), 25m(PD-125) are optional |
| Specifications |
|
Item |
PD-110 |
PT-111 |
PD-115 |
|
Rated Voltage |
12VDC |
|
Detect range |
10m |
11m |
15m |
|
Pet immunity |
No |
40kg |
No |
|
Anti-mask |
No |
No |
No |
|
Operated Voltage |
9-16VDC |
|
Rated Current |
25mA at 12VDC |
|
Contacts of Alarm |
NC, 12VDC, 100mA max |
|
Installation Height |
2.4m |
|
Detecting Distance |
10m (under 26℃ in indoor room) |
|
Detecting Angle |
110° |
|
Response time to Alarm |
2.2s |
|
Time to Warm-up |
2 minutes |
|
RFI characteristic |
22V/m at 10Mhz to 1Ghz |
|
Operating Temperature |
-5ºC to 50ºC |
|
Size (L*W*H) |
128 x 64 x 40mm | |
|
